The Stout Motor Car Company was founden in 1936 and ceased production in 1946. It was headquartered in Detroit, Michigan, United States.

It was founded by William B. Stout.

scarab

The Stout Scarab is a streamlined 1930–1940s American car, designed by William Bushnell Stout and manufactured by Stout Engineering Laboratories and later by Stout Motor Car Company of Detroit, Michigan.

The Stout Scarab is credited by some as the world's first production minivan, and a 1946 experimental prototype of the Scarab became the world's first car with a fiberglass bodyshell and air suspension.

Contemporary production cars commonly had a separate chassis and body with a long hood. The engine compartment and engine were behind the front axle and ahead of the passenger compartment. The front-mounted engine typically drove the rear axle through a drive shaft underneath the floor of the vehicle. This layout worked well, but limited the passenger space.

In contrast, the Scarab design eliminated the chassis and drive shaft to create a low, flat floor for the interior, using a unitized body structure and placing a Ford-built V8 engine in the rear of the vehicle. Stout envisioned his traveling machine as an office on wheels. To that end, the Scarab's body, styled by John Tjaarda, a Dutch automobile engineer, closely emulated the design of an aluminum aircraft fuselage. The use of lighter materials resulted in a vehicle weighing under 1400 kg.

2009-2016The short, streamlined nose and tapering upper body at the rear foreshadowed contemporary monospace (or one-box) MPV or minivan design, featuring a removable table and second row seats that turn 180 degrees to face the rear — a feature that Chrysler marketed over 50 years later as "Swivel ’n Go".

Although reminiscent of the Chrysler Airflowstreamliner, and the slightly later (1938) Volkswagen Beetle — other aerodynamically efficient shapes, the Stout Scarab was generally considered ugly at the time. Decades later, its futuristic design and curvaceous, finely detailed nose earn it respect as an Art Deco icon.

innovative features

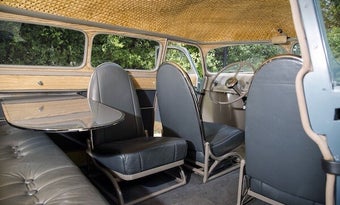

The Scarab's interior space was maximized by its ponton styling, which dispensed with running boards and expanded the cabin to the full width of the car. A long wheelbase and the engine directly over the rear axle moved the driver forward, enabling a steering wheel almost directly above the front wheels. Passengers entered through a single, large, common door. A flexible seating system could be easily reconfigured (except for the driver's seat, which was fixed). The design anticipated the seating in modern minivans, such as the Chrysler Voyager and Renault Espace; a small card table could be fitted with the passenger seats as needed. Interiors were appointed in leather, chrome, and wood. Design elements also worked in a stylized ancient Egyptian scarab motif, including the car's emblem. Visibility to the front and sides was similar to that of an observation car, although rearward vision was negligible and there were no rear-view mirrors.

The innovations did not end with the car's layout and body design. In an era where almost everything on the road had rigid axles with leaf springs, the Scarab featured independent suspension using coil springs on all four corners, providing a smoother, quieter ride. The rear-engine-induced weight bias coupled to the coil spring suspension and "Oil Shock Absorbers" endowed the Scarab with "Smooth Riding and Easy Steering on Rough Roads", if not very good handling and traction (even by the standards of the early 1930s, the reputation of the Scarab was one of very poor "blackjack-like" handling). The rear swing axle suspension with long coil spring struts was inspired by aircraft landing gear. The Scarab suspension inspired the later Chapman strut used by Lotus from their Lotus Twelve model of 1957.

The Ford flat-head V8 drove the rear wheels via a custom Stout-built three-speed manual transaxle. The engine was reversed from its normal position, mounted directly over the rear axle and with the flywheel and clutch facing forward. The transmission was mounted ahead of this, reversing and lowering the drive-line back to the axle. This unusual layout would later be repeated by the Lamborghini Countach.

production

A drivable prototype of the Scarab was completed in 1932, probably the first car to have an aluminum spaceframe unit-construction body. Some frame parts were steel. The second prototype was ready in 1935, with some styling and mechanical changes. The headlamps were set behind a fine, vertical-bar grille, and at the rear, narrow chrome bars curved from the back window down to the bumper, giving the car its Art Deco appearance. The body was changed to steel to reduce cost.



Stout stated that the car would be manufactured in limited quantities and sold by invitation. Up to a hundred a year were to be made in a small factory at the corner of Scott Street and Telegraph Road (US 24), Dearborn, Michigan. Although the Scarab garnered much press coverage, at $5,000 (equivalent to $113,297 in 2024), when a luxurious and ultra-modern Chrysler Imperial Airflow cost just $1,345, very few could pay the hefty premium for innovation. Nine Scarabs are believed to have been built. The vehicles were never produced in volume and were hand-made, with no two Scarabs identical.



Immediately following World War II, Stout built one more prototype Scarab, called the Stout Scarab Experimental. It was exhibited in 1946 and was more conventional in appearance, although still equipped with a rear engine. It was a 2-door, featured a wraparound windshield and the world's first fiberglass body. Like its metal counterparts, it too was a monocoque, built up out of only eight separate pieces and featured the world's first fully functioning air suspension, previously developed in 1933 by Firestone. It was never produced.

prototypes

The Stout Scarabs were the creation of William B. Stout, who was also associated with Henry Ford and designed the Ford Tri-Motor aircraft.  Between 1932 and 1946 he built a series of road-going prototype vehicles, but he was never able to achieve volume production.  The layout was unique for its time in its utilization of space, devoting a major portion of the vehicle’s footprint to the passenger cabin—much like a modern minivan.

A final, updated version  constructed in 1946, the Stout Scarab Experimental, utilized a fiberglass body shell—claimed to be the world’s first—and air suspension. That’s Bill Stout at the wheel. This car still exists today in the collection of the Detroit Historical Society.

legacy

Stout owned and drove his own Scarab, accumulating over 250,000 miles in travel around the United States.

Up to five Scarabs are reported to survive today. A 1935 Scarab in running condition was on display for many years at the Owls Head Transportation Museum in Owls Head, Maine, but was returned to its lender, the Detroit Historical Museum. The Detroit Historical Museum's vehicle was scheduled to be returned to the museum's storage on August 21, 2016, when another car would be rotated into the exhibition.
